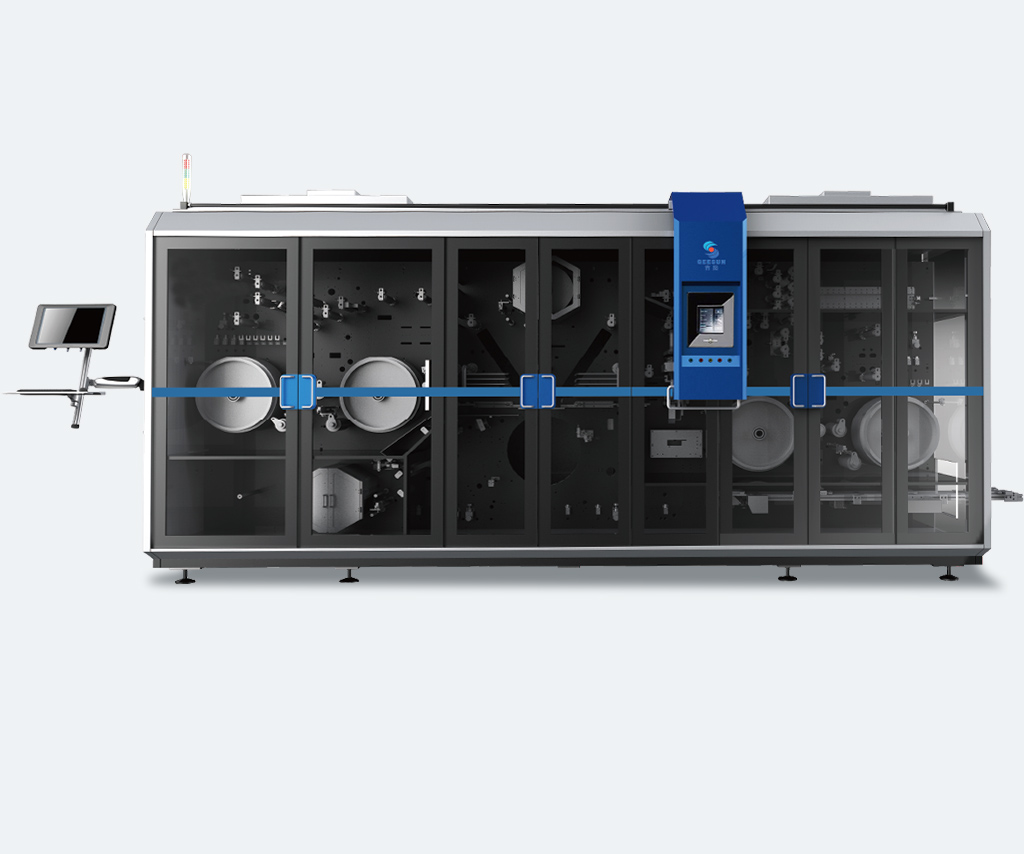

大方形自動卷繞機Large prismatic automatic winding machine

性能特點 Performance features
1.極片具備多級有效糾偏系統，CCD結合糾偏機構，實現糾偏閉環；
2.卷繞張力實時檢測并與調節機構閉環控制；
3.具備多極耳卷繞防翻折和打折檢測功能；
4.具有檢測正、負極片已作不良標記的來料功能，對不良極片單獨卷繞，自動剔除；
5.具有刷粉、除塵功能，裁斷極片切刀處加有真空吸塵裝置。

1. The electrode is equipped with multi-stage effective EPC system, together with CCD control to achieve closed loop correction.
2. Real-time detection of winding tension and closed-loop control with the regulating mechanism.
3. With multi-tabs anti-folding detection function.
4. Equipped with the function of detecting the label marking of the incoming materials, winding the defective electrode separately and rejecting them automatically.
5. With the function of brushing powder and dust removal, a vacuum cleaning device is equipped at the cutter.

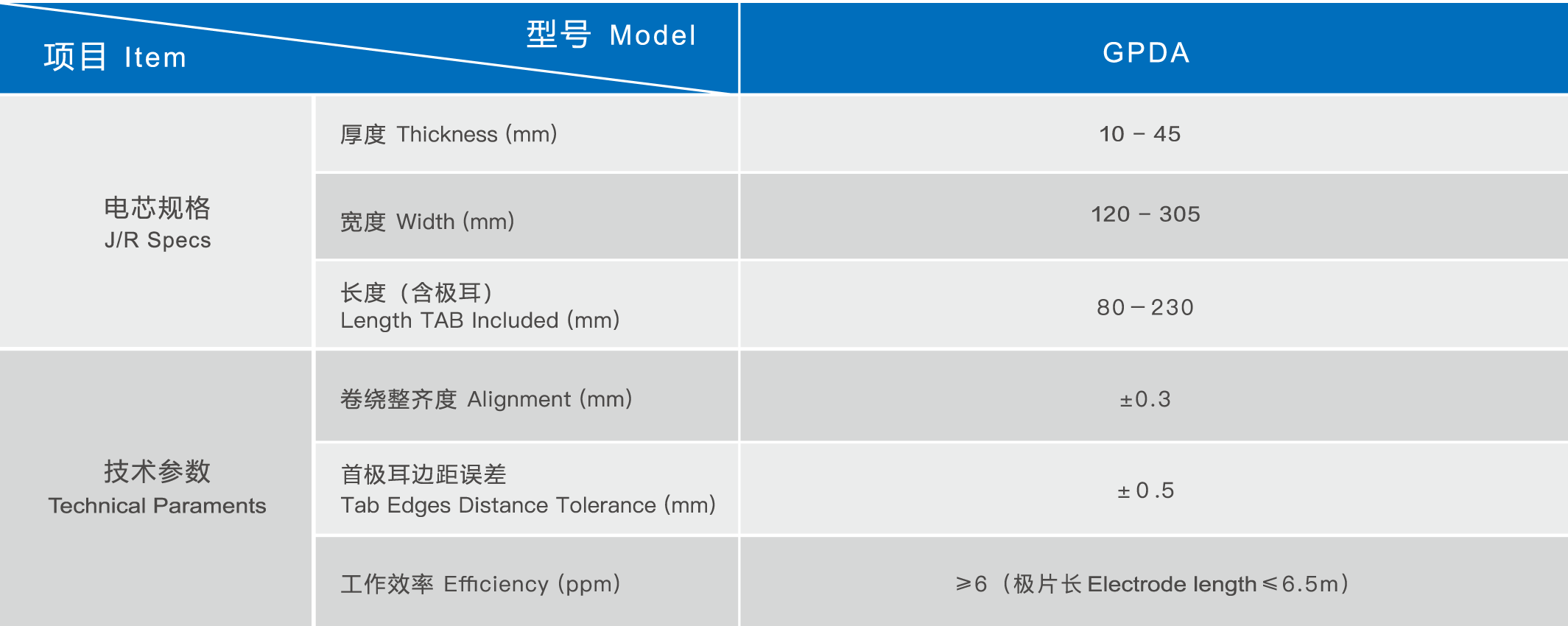

規格參數 Specification and parameter
