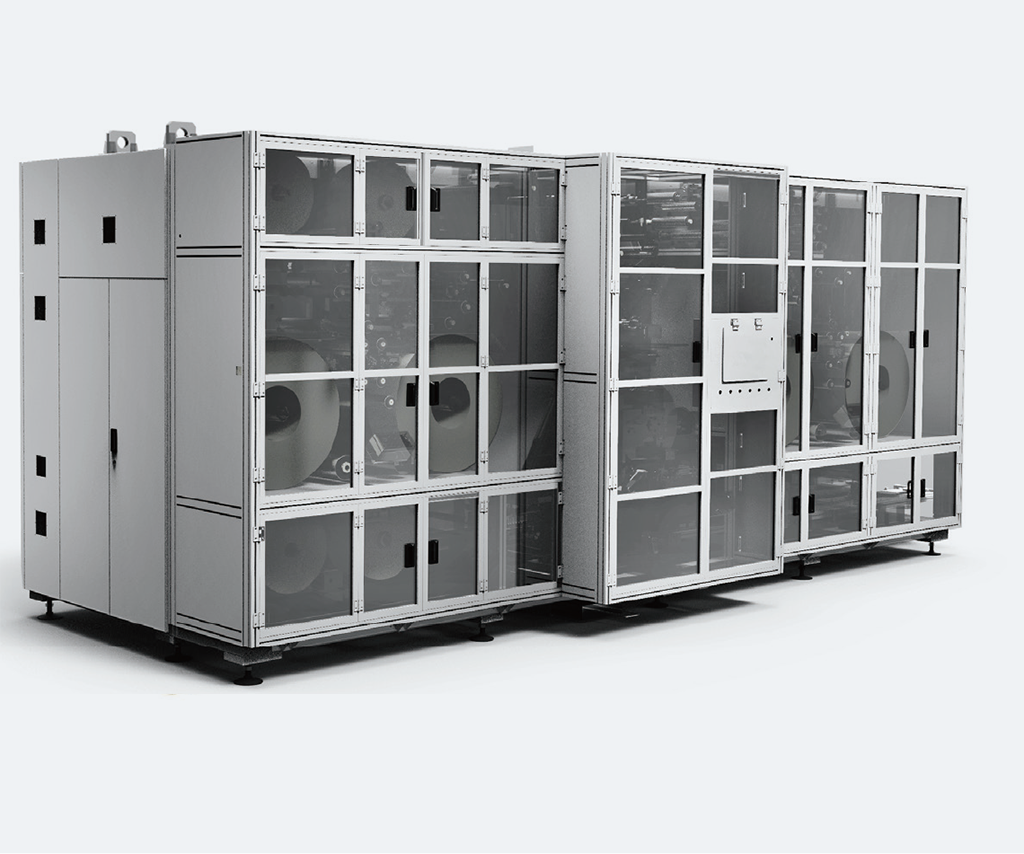

方形激光切卷繞一體機Prismatic laser cutting and winding AIO machine

性能特點 Performance features
1.自動調整極耳間距，實現變極耳切割；
2.切割過程除塵、收卷除塵功能，切割區域無粉塵堆積；
3.具備切割MARK孔和R角功能；
4.極片具備多級有效糾偏系統，CCD結合糾偏機構，實現糾偏閉環；
5.卷繞張力實時檢測并與調節機構閉環控制；
6.具有檢測正、負極片已作不良標記的來料功能，對不良極片單獨卷繞，自動剔除；
7.直驅卷繞頭，響應速度更快；
8.具有刷粉、除塵功能，裁斷極片切刀處加有真空吸塵裝置。

1. Automatic adjustment of tabs spacing to achieve variable tabs cutting.
2. Process dust removal and rewinding dust removal function, no dust accumulation in the cutting area.
3. Equipped with the function of cutting MARK hole and R angle.
4. Multi-stage EPC control system for electrode, together with CCD control to achieve closed loop correction.
5. Real-time detection of winding tension and closed-loop control with regulating mechanism.
6. Equipped with the function of detecting the label marking of the incoming materials, winding the defective electrode separately and rejecting them automatically.
7. Direct drive winding head, faster response speed.
8. With the function of brushing powder and dust removal, a vacuum cleaning device is equipped at the cutter.

規格參數 Specification and parameter
